Mechanical Equipment  SBJ-1500 |  SBJ-2000 |  SBJ-3150 |
Detailed Product Description :

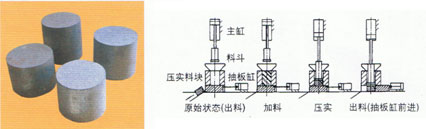

This machine is used for cold pressing of other metal scraps including powdery grainy cast iron scrap, aluminium scrap, copper scrap and steel scrap etc. to columniform caky block with the density ≥ 5.5 t/m3( without any bond ). the caky block can be used as pig iron for charging into furnace .This machine is designed with quick speed cylinder and liquid rinsing valve.Product characteristics:
- This machine applies a hydraulic drive with low noise, it is safe and reliable
- This machine is equipped with an acceleration cylinder and a liquid-filling valve, which double the operation efficiency.
- The main unit applies a vertical framework structure and is simple and convenient in operation .
SBJ Series Manual Quick Scrap Briquetting Press & Main Technical Parameter
| Type | SBJ-1500 | SBJ-1500A | SBJ-2000 | SBJ-2000A | SBJ-2500 | SBJ-2500B |
| Nominal pressure (KN) | 1225 | 1225 | 1538 | 1538 | 2009 | 2009 |
| Inner diameter of main cylinder (φmm ) | φ250 | φ250 | φ280 | φ280 | φ320 | φ320 |
| Size of briquette (mm) | φ80 x (50~70) | φ80 x (50~70) | φ80φ90 x (60~80) | φ80φ90 x (60~80) | φ90 x(60~80) | φ90 x (60~80) |
| Density ( t/m3) | ≥4.8 | ≥4.8 | ≥5 | ≥5 | ≥5 | ≥5 |
| Weight of briquette (Kg) | 2~2. 5 | 2~2. 5 | 2. 5~3 | 2. 5~3 | 3~3. 5 | 3~3. 5 |
| Productivity (Block/min) | 3 | 5 | 4 | 5 | 5 | 5 |
| Output in one shift ( t ) | 2~2. 5 | 3~4 | 4~5 | 5~6 | 5~8 | 5~8 |
| Total power (kw) | 15 | 15 | 18. 5 | 15 | 18. 5 | 18. 5 |
| Weight of machine | 3000 | 3100 | 3480 | 3600 | 4000 | 4200 |
| Overall dimension (mm) | 2100 x 1400 x 2000 | 2100 x 1400 x 2000 | 2200 x 1450 x 2000 | 2200 x 1450 x 2800 | 2400 x 1500 x 3100 | 2400 x 2100 x 3100 |
| Operating Model | Manual | Quick-manual | Quick-manual | Quick-Fluid drive | Quick-Fluid drive | Auto feeding |
| Remark | Two operators | One operator | Two operators | One operator | Two operators | One operator |
Detailed Product Description:
This machine is used for cold pressing of other metal scraps including powdery grainy cast iron scrap, aluminium scrap, copper scrap and steel scrap etc. to columniform caky block with the density ≥ 5.5~6.2 t/m3( without any bond ). The output of the shift is 8~20tons. This machine is designed with vertical structure , upper & nether beams of cast steel , with PLC controlling , auto charging, auto pressing , auto discharging , this machine is under full automatically, it is easy to operate. This machine has been granted two national patents.Product characteristics:
- This machine applies a hydraulic drive with low noise, it is safe and reliable
- Thia machine applies a vertical framework structure, occupies small area
- PLC control with automatic material feeding and discharging
SBJ Series Auto Quick Scrap Briquetting Press & Main Technical Parameter
| Type | SBJ-2500C | SBJ-3150A | SBJ-3150B | SBJ-3600 | SBJ-5000 | SBJ-6300 |
| Nominal pressure(KN) | 2009 | 2543 | 2543 | 3140 | 3974 | 5306 |
| Inner diameter of main cylinder (φ mm ) | φ320 | φ360 | φ360 | φ400 | φ450 | φ520 |
| Size of briquette (mm) | φ90 x (60~80) | φ90~φ110 x (60~100) | φ90~φ110 x (60~100) | φ100~φ130 x (60~100) | φ110~φ140 x (80~120) | φ140~φ160 x (80~150) |
| Density ( t/m3) | ≥5 | ≥5. 5 | ≥5. 5 | ≥5. 5~6 | ≥5. 5~6 | ≥5. 5~6 |
| Weight of briquette (kg) | 2. 5~3 | 3~4 | 3~4 | 3~4. 5 | 4~8 | 6~10 |
| Productivity (Block/min) | 5 | 4. 5 | 6~6. 5 | 5~6 | 4~5 | 4~5 |
| Output in one shift ( t ) | 5~8 | 6~8 | 8~12 | 8~14 | 12~16 | 16~20 |
| Total power ( Kw) | 18. 5 | 22 | 30 | 30 | 37 (30) | 37 |
| Weight of machine ( Kg ) | 4200 | 6650 | 6650 | 6900 | 8950 | 10000 |
| Overall dimension (mm ) | 2400 x 2100 x 3100 | 3100 x 2900 x 3200 | 3100 x 2900 x 3200 | 3200 x 3000 x 3200 | 3300 x 3000 x 3600 | 3400 x 3100 x 4000 |
| Remark | PLC Auto | PLC Auto | PLC Auto | PLC Auto | PLC Auto | PLC Auto |
